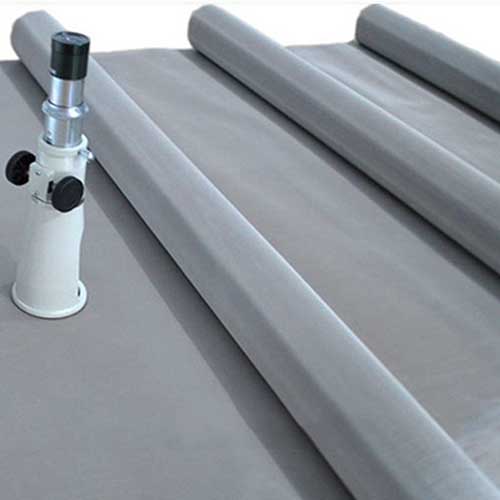

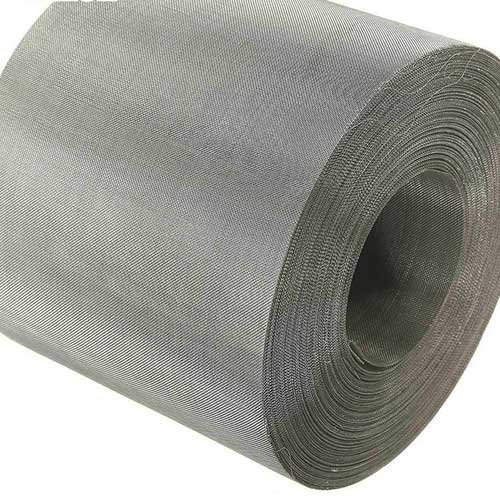

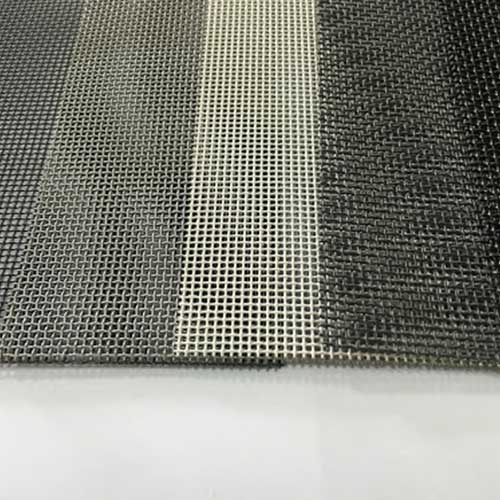

Stainless Steel Dutch Plain Woven Wire Mesh

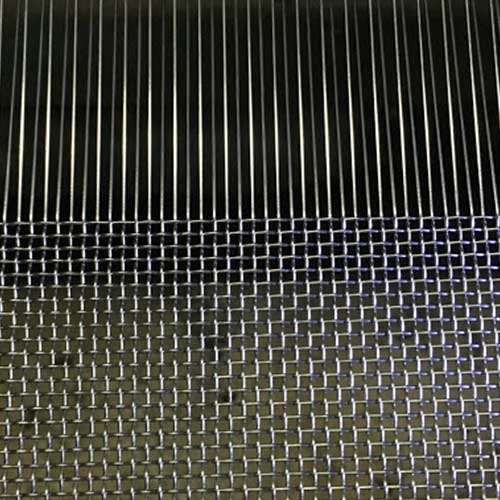

Stainless Steel Dutch Plain Woven Wire Mesh is woven using two sizes of wire. Use smaller wires in the closed direction, such as micron size, and braid with larger warp threads. The smaller wires are tightly woven together to provide a tight filter. The larger wire provides strength to the mesh. The main purpose of this wire cloth is to filter and separate liquid and slurry products.

Specifications Of Stainless Steel Dutch Plain Woven Wire Mesh:

Materials: 202, 302, 304, 304L, 310S, 316, 316L, 321, 410, 430, super duplex stainless steel, duplex stainless steel, etc.

• 304 SS: The most commonly used stainless steel in wire weaving. Excellent corrosion performance, can withstand temperatures of 1100 degrees Fahrenheit.

• 304L SS: Similar performance to 304ss, but with lower carbon content, better welding can be achieved.

• 316 SS: Similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.

• 316L SS: Similar to 304ss, but stabilized by adding molybdenum to improve its chemical resistance.

• 321 SS has both higher creep strength and stress rupture capabilities, and similarly possesses good low-temperature toughness.


Weaving Method: plain dutch weave, twill dutch weave.

Surface Treatment: pickling and passivation, polishing.

Packing:

• Rolls wrapped with waterproof paper and plastic film;

•  Sheets in wooden cases or on pallets.

Features Of Stainless Steel Dutch Plain Woven Wire Mesh:

• Stable and strong structure;

• Excellent corrosion, high temperature and abrasion resistance;

• Durable and has a long service life;

• Two weaving methods show beautiful surface.




Applications Of Stainless Steel Dutch Plain Woven Wire Mesh:

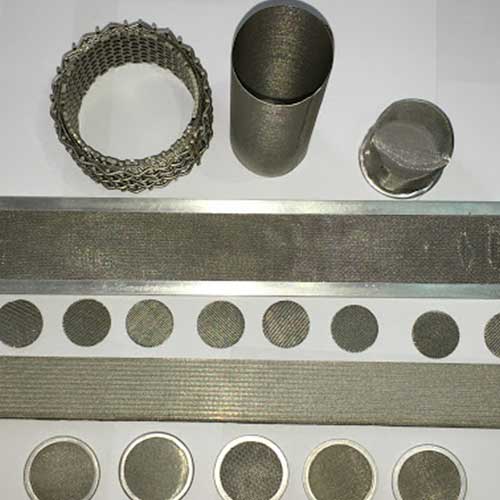

• Used for filter or sieve, such as fuel filter, vacuum filter, and the filtration of cast film machine, sewage treatment;

• Serve in petroleum, aerospace, metallurgy, food, medicine industries;

• Conveyor belts for washers, dryers and sludge presses.
